Guard rail post adjustable – simple base
Product code: 20-PF-GC-1

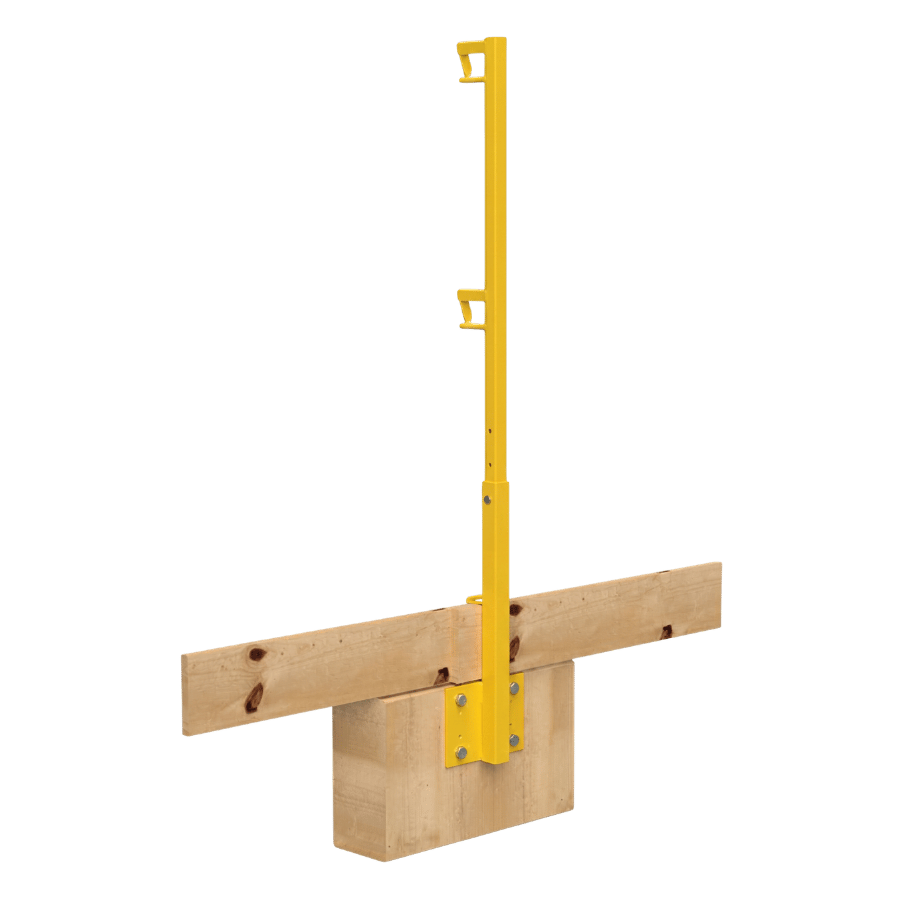

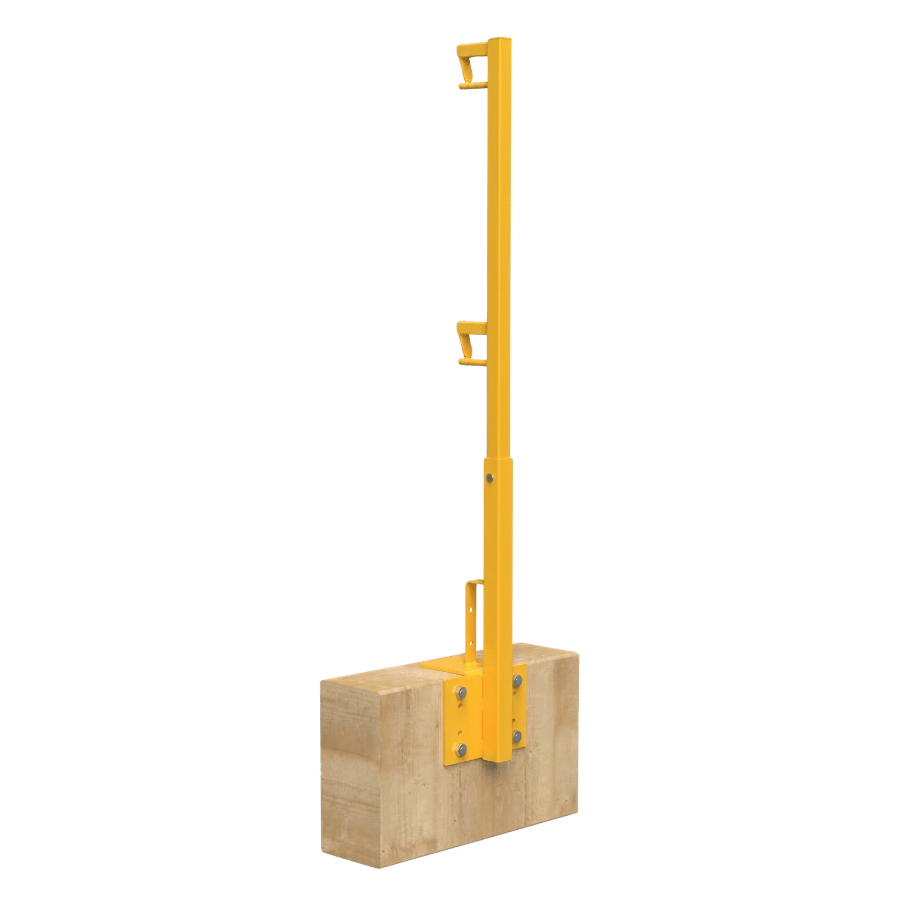

Ensure optimal job site safety with the Premium Flash Adjustable Guard Rail Post featuring a Single Base. Engineered for construction professionals, this heavy-duty welded steel post provides reliable fall protection for open edges, parapets, and flat surfaces.
Featuring an adjustable height design, it easily adapts to your specific project needs. It is also equipped with a built-in toe-board bracket for wooden planks, effectively preventing tools and debris from falling to lower levels.
| Width | 1.25” (3.18 cm) |
| Thickness | 1.25” (3.18 cm) |
| Length | 42.75” (108.59 cm) |
| Weight | 17.05 lbs (7.73 kg) |
| Material | Powder Coated Steel |
- 3/8” x 2.5” Lag Screw (9.5 mm x 63.5 mm)
- 1/2” x 2.25” Lag Screw (12.7 mm x 57.15 mm)
GUARDRAIL SYSTEM COMPONENTS
The Guardrail Single Adjustable Post with Gravity Lock consists of various components. The example there illustrates the individual parts that make up the system.
*These parts may or may not be included in your specific system and are provided for reference purposes only.
The bars are versatile and suitable for both top and bottom positions.
· 20-PF-GC-BARP : 10' x 1 1/4'' Galvanized Steel Guardrail Bar
· 20-PF-GC-BARP : 10' x 1 5/8'' Galvanized Steel Guardrail Bar
MOUNTING THE BRACKETS:
