Guard Rail Post Adjustable – 2 in 1 Base
Product Code: 20-PF-GC-2

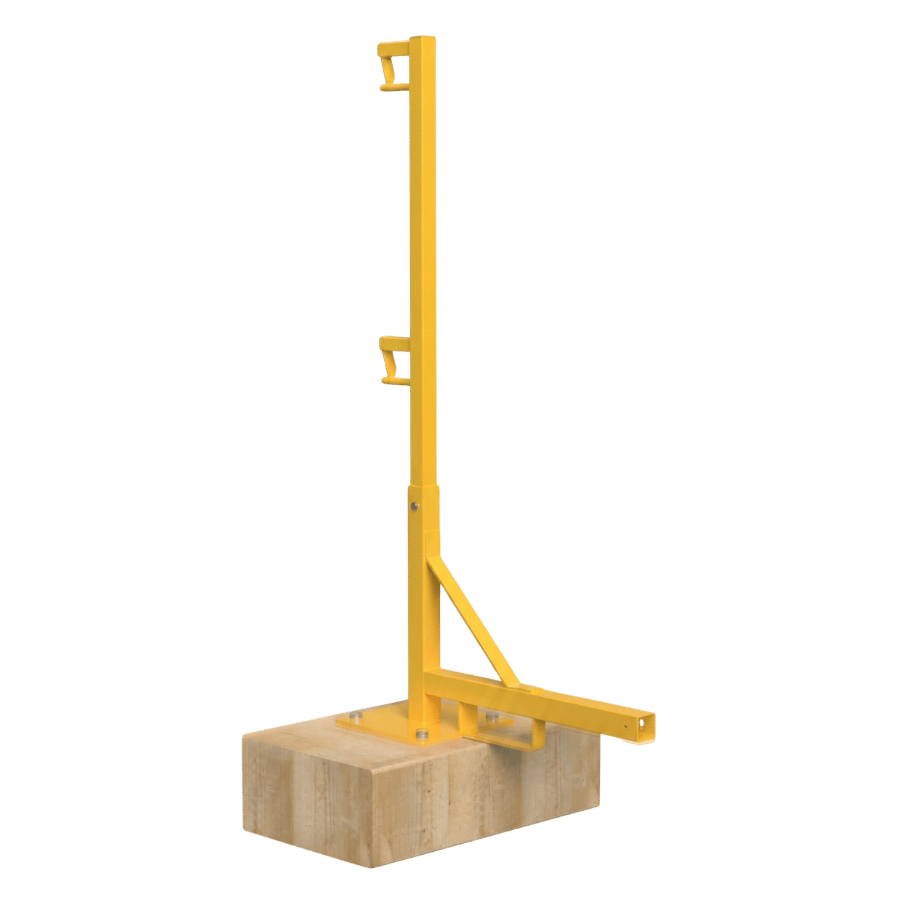

Maximize job site safety with the Premium Flash Guard Rail Post Adjustable – 2 in 1 Base. Engineered for construction professionals, this heavy-duty powder-coated steel post provides reliable and versatile fall protection for parapets, open edges, and flat roofs.

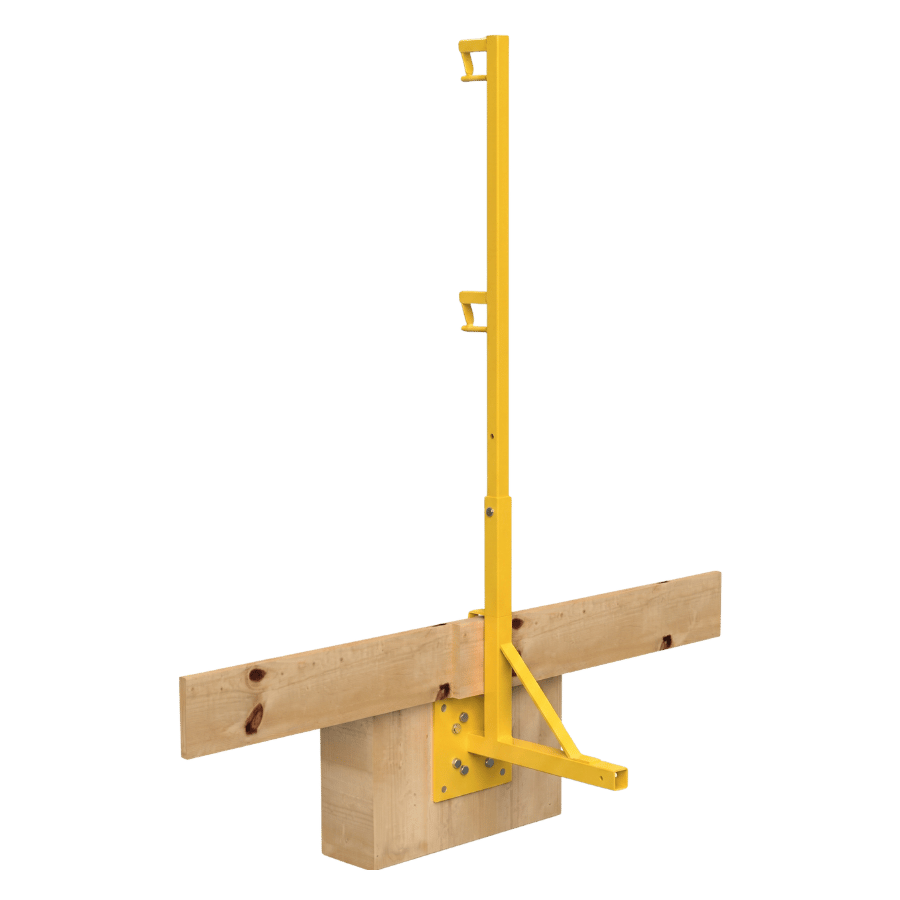

Featuring a unique dual-position base, it easily adapts to a wide range of mounting surfaces, including parapet walls, header beams, floor joists, wall studs, roof trusses, and flat roofs. It also incorporates an advanced gravity-locking pin system to safely secure the top and middle rails.
| Width | 1.25” (3.18 cm) |
| Thickness | 1.25” (3.18 cm) |
| Length | 42.75” (108.59 cm) |
| Weight | 17.05 lbs (7.73 kg) |
| Material | Powder Coated Steel |
- 5/16” x 2.5”” Lag Screw (7,94 mm x 63,5 mm)
- 1/2” x 2.25” Lag Screw (12.7 mm x 57.15 mm)
GUARDRAIL SYSTEM COMPONENTS
The Guard Rail Post Adjustable - 2 in 1 Base consists of various components. The example there illustrates the individual parts that make up the system.
*These parts may or may not be included in your specific system and are provided for reference purposes only.
The bars are versatile and suitable for both top and bottom positions.
· 20-PF-GC-BARP : 10' x 1 1/4'' Galvanized Steel Guardrail Bar
· 20-PF-GC-BARP : 10' x 1 5/8'' Galvanized Steel Guardrail Bar
MOUNTING THE BRACKETS:
