Rubberized Asphalt Kettle
Engineered for demanding rooftop conditions, the diesel fired oil-jacketed melting kettle with gravity pour delivery system delivers fast, uniform heating with its oil-jacketed design, ensuring consistent material flow and reduced downtime. Built for safety and durability, it provides reliable temperature control, stable operation, and efficiency throughout the sealing and waterproofing application.
ADVANTAGES
- STABLE OIL-JACKETED HEAT
- HYDRAULIC AGITATION
- NON-JAMMING SWEEP AGITATOR
- DIESEL-POWERED SYSTEM
- INSULATED FIRING CHAMBER
- GRAVITY-POUR DELIVERY
- 10-GA STEEL CONSTRUCTION
- KUBOTA DIESEL ENGINE
- SINGLE-FUEL OPERATION
HIGHLIGHTS
FASTER MELTING
Gets asphalt to working temperature quickly so crews stay productive.
CONSISTENT HEAT
Oil-jacketed system prevents scorching and keeps pour quality stable.
SAFER OPERATION
Better temperature control reduces risk of flare-ups and material waste.
Documentation
Technical Data
| Capacity | Construction | Engine | Agitation | Delivery | Fuel | Axle Capacity |
Tires | Applications |
|---|---|---|---|---|---|---|---|---|
| 130 gal | 10-ga steel, fully welded | 6 hp Kubota diesel | Hydraulic | Gravity pour | Diesel (single source) | 5,200 lbs | (2) 225/75/R15 | Roofing, waterproofing |
Models
DIRECT FIRED KETTLES
Fast setup. Reliable heat. Built for daily roofing & waterproofing.
Direct fired kettles are designed for contractors who need fast melting, reliable heat, and simple daily
operation. Ideal for waterproofing and roofing work, these units deliver dependable performance in a
compact, jobsite-ready design.
| Capacity | Construction | Engine | Agitation | Delivery | Fuel | Axle Capacity | Tires | Applications |
|---|---|---|---|---|---|---|---|---|
| 130 gal | 10-ga steel, fully welded | 6 hp Kubota diesel | Hydraulic | Gravity pour | Diesel (single source) | 5,200 lbs | (2) 225/75/R15 | Roofing, waterproofing |
KER-DFSM0030_
30 GAL DIRECT FIRED MELTER
The skid mounted 30 gallon melter is designed to be used with applicator pots and tools. The 30 gallon melters come equipped with a 2” gravity fed valve to dispense material into an applicator pot or pouring bucket. Each unit is hand agitated and comes with a material thermometer, lifting handles, double headed 160,000 BTU burner and propane hose with regulator.
KER-DFSM0060_
60 GAL DIRECT FIRED MELTER
The skid mounted 60-gallon melter is designed to be used with applicator pots and tools. Equipped with a 5.5hp engine powers the agitation and a double headed 160,000 BTU propane burner to provide fast heat up times. The unit is also equipped with a material thermometer, propane hose with regulator and 2” draw off valve. Designed to fit into service elevators. Available with casters for ease of movement on job site.

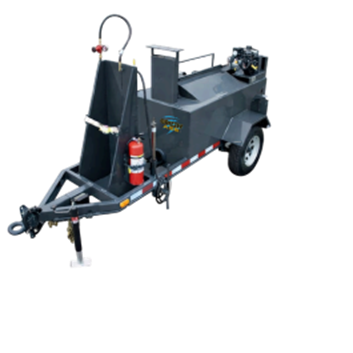

KER-OJWB0011_
100 GAL DIRECT FIRED MELTER
The largest direct fired kettle available holds a capacity for 100 gallons of rubberized ashphalt. This unit allows the contractor to increase the amount of material being melted without upgrading to a larger oil jacketed kettle. This unit comes with a single 3,500 lb axle with electric brakes and breakaway kit. Material is heated with a 300,000 BTU propane burner and comes with a single propane bottle holder.
OIL JACKETED MELTING KETTLES
Propane Fired or Diesel Fired – Gravity Pour Delivery System
Oil jacketed melting kettles are designed for large-scale waterproofing projects.
The oil jacketed system provides uniform heat distribution, prevents material scorching, and ensures
precise temperature control for consistent application.
SELECT THE RIGHT CAPACITY
| MODELS | MATERIAL VAT | BEST FOR |
|---|---|---|
| KER-OJTW0130D__S_ | 130 GAL (492 L) | MEDIUM CREWS, DAILY SEALING |
| KER-OJTW0230D__S_ | 230 GAL (870 L) | HIGH-PRODUCTION CREWS |
| KER-OJTW0370D__S_ | 370 GAL (1,399 L) | MUNICIPAL & LARGE |
WHICH FUEL IS RIGHT FOR YOUR CREW?
| PROPANE | DIESEL |
|---|---|
|
|

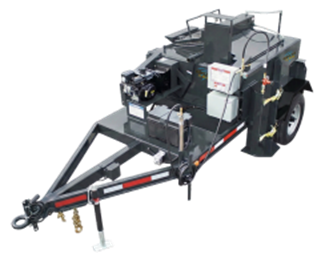

KER-OJTW0130D_PS_
130 GALLONS

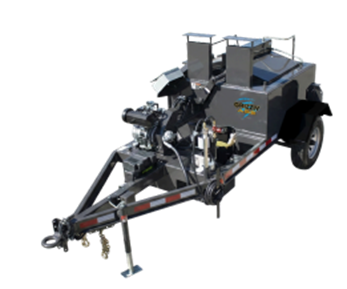

KER-OJTW0130D_DS_
130 GALLONS

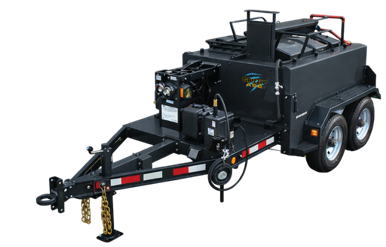

KER-OJTW0230D_PS_
230 GALLONS

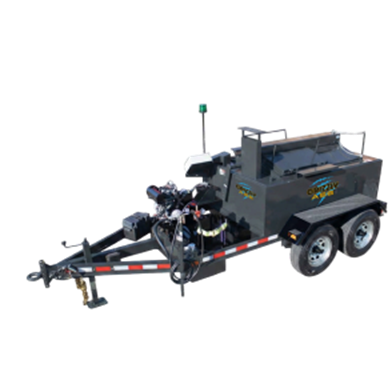

KER-OJTW0230D_DS_
230 GALLONS

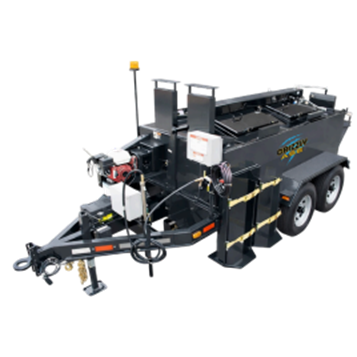

KER-OJTW0370D_PS_
370 GALLONS

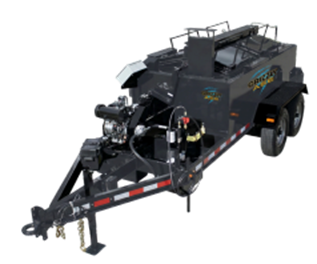

KER-OJTW0370D_DS_
370 GALLONS
OPTIONAL EQUIPMENT / ACCESSORIES FOR OIL JACKETED MELTING KETTLES
KER-ACCE1027B
KER-ACCE8140B
KER-ACCE1025B
KER-ACCE1010B
KER-ACCE1505B
Slow-moving vehicle sign
Amber strobe light
Flashing LED arrow stick advisor
LED Work light installed
Additional propane bottle holder
KER-ACCE8300B
KER-ACCE1147B

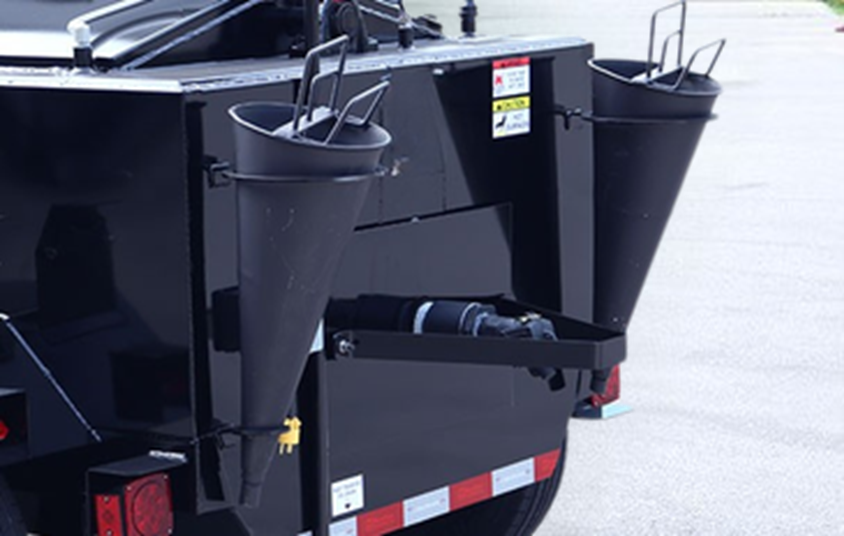

KER-ACCE0302B
KER-ACCE0304B
3" Molasses valve
Tool box installed on trailer
Bucket holder
Bucket bracket extension
OPTIONAL EQUIPMENT / ACCESSORIES
KER-ACCE8109B
KER-ACCETIREB
KER-ACCE9999C
KER-ACCE8200B
KER-ACCEATCPB
2-5/16" Ball hitch
Spare tire and rim mounted to trailer
Alternate standard paint colour
300,000 BTU Vapour propane torch with 15' propane hose & bottle holder
Automatic temperature control with electronic ignition, battery and charger
| KER-ACCE0205B | 3 gal. Pouring cone with 1″ nipple |
| KER-ACCERIMSB | Aluminum rims each |
WALK-BEHIND MELTER APPLICATOR

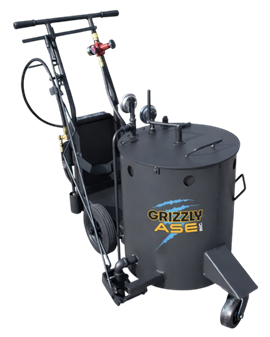

KER-OJWB0011_
10 GAL OIL-JACKETED WALK-BEHIND
10 gallon oil jacketed melting kettle is an ideal size and design for small waterproofing projects. This kettle has many features of our larger oil jacketed melters, but in a smaller portable unit.
| MODELS | FRAME TYPE | CAPACITY | WEIGHT | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| KER-OJWB001I_ | PORTABLE | 10 GALLONS | 212 LBS (96 KG) | 60" | 24" | 38" |
