PAUS PTK 31

Trailer crane for roofing and construction

Lift materials directly to the roof.

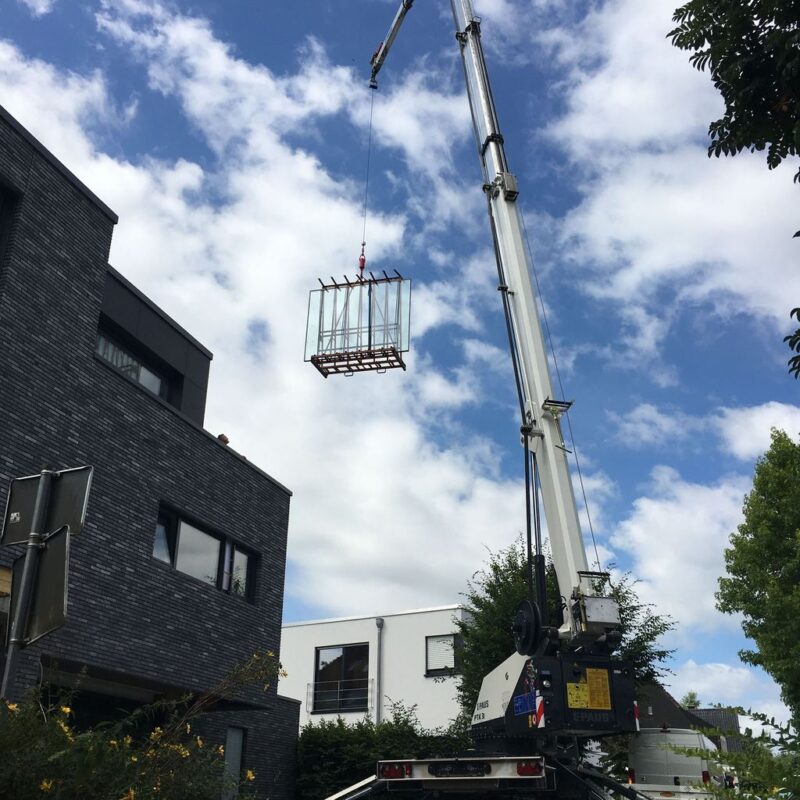

The PAUS PTK 31 is a trailer-mounted crane for roofing and construction crews.
Its articulated boom helps reach over obstacles, while four independently
adjustable hydraulic outriggers give crews more flexibility when setting up
on tight or uneven job sites.

Details

  • Extended length up to 31 m

  • Maximum payload of 1.6 tonnes

  • Fully hydraulic fly jib

  • Closed aluminium profiles for even greater stability

  • Easy to set up, thanks to automatic self-levelling

  • Lowerable rear axle makes it easier to manoeuvre

  • Extremely easy to handle thanks to radio remote control

  • Cathodic-dip-coated chassis including powder coating and cavity sealant

  • Large lateral range with maximum stability

  • At a gross weight of 3.5 tonnes, the Skyworker can be easily transported using a car

    Key Figures

    100 ft Max. Boom Extension 30.5 m
    82 ft Max. Lateral Reach 25 m
    3,527 lb Max. Lifting Capacity* 1,600 kg
    360° Continuous Rotation

    *Allowable load varies with working radius and boom configuration. Refer to the load chart for rated capacities.

    Documentation

    Technical Data

    Specification Value
    Maximum extension length ≈ 30.50 m
    Arm angle ≈ 0° – 173°
    Maximum upright angle 83°
    Cable velocity ≈ 0 – 50 m/min
    Drive Petrol / opt. Diesel
    Pivot range 360° continuous
    Minimum footprint width ≈ 3.30 m
    Maximum footprint width ≈ 4.80 m
    Maximum payload ≈ 1,600 kg
    Transport width ≈ 1.99 m
    Transport height ≈ 2.45 m
    Transport length with drawbar ≈ 8.80 m
    Axle load ≈ 3,500 kg
    Support load max. 150 kg
    Total weight (standard version) ≈ 3,500 kg
    Scroll the table horizontally if it exceeds your screen width.

    Options

    • Environmentally friendly 400 V electric drive

    • Zero emissions and quiet

    • Can be used within halls

    • Easy to dismantle thanks to quick-coupling connections and forklift slots

    • Protects people during work at height

    • Retractable type fall arrester (in accordance with EN 360) including safety harness is hooked into load hook adapter

    • Working radius of the retractable type fall arrester starting from the hook tip: 10 metres

    • Radio remote control is connected to the crane by cable—visual contact between operator and person being protected

    • Current status of the personal fall protection equipment can be read on the display

    • Protection against operator error through control-side monitoring of all safety-related requirements

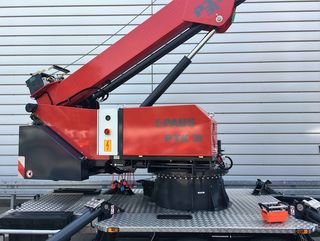

      csm_E-Motor-PTK-31_b7d9192fcf
      400V electric drive trailer crane

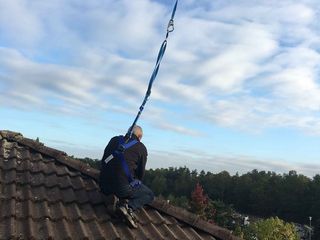

      csm_PSA_94fafab4cb
      Personal protective equipment trailer crane

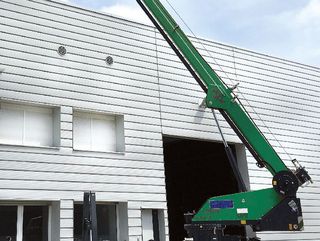

      csm_Sonderlackierung_fac7d8af0f
      Special painting trailer crane

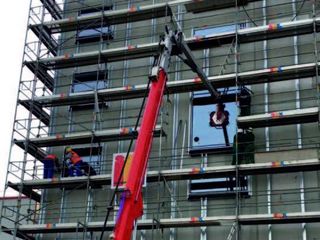

      csm_Paus-Skyworker-Kran-kh03-PTK-27_option_2_246951c276
      Tip extension trailer crane

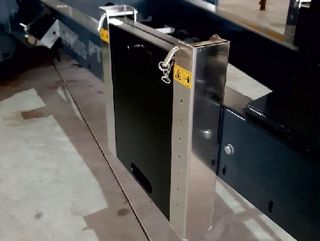

      csm_unterlegplatte01_50a5dd47b5
      Base plates trailer crane
      csm_Paus-Skyworker-Kran-kh03-PTK-27_option_3_66870edc8d
      Tile distributor trailer crane

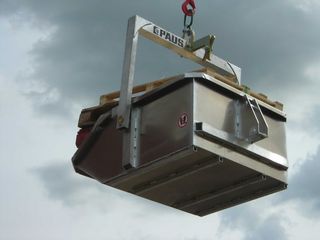

      csm_Kippmulde_2f0430d7cc
      Aluminium tipping bucket trailer crane

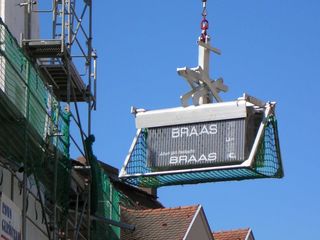

      csm_Dachziegelzange_e2b57a9a08
      Aluminium roof tile clamps trailer crane

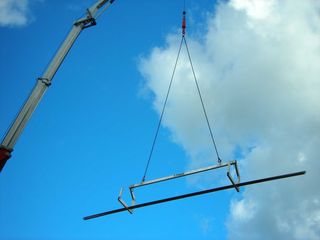

      csm_Langgutgabel_9aa9ad0a12
      Aluminium long material fork trailer crane

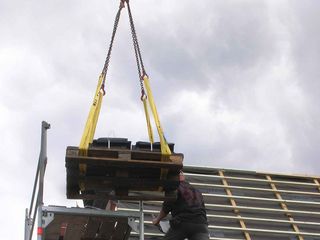

      csm_Hebeband_e5f0e97bbe
      Slings trailer crane

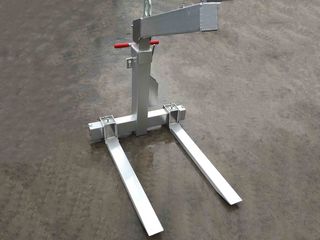

      csm_IMG_9572_bearbeitet_52e752af28
      Different aluminium palette fork up to 1,200 kg payload trailer crane

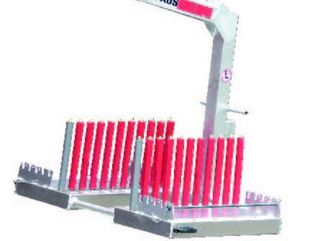

      csm_Paus-Skyworker-Kran-kh03-PTK-27_option_1_4e38bfda30
      Solar module distributor trailer crane

      Benefits in Practice

      • Quick set-up even on uneven terrain

      • Reduced fuel costs and easy transport

      • Safety features: fall protection, live load monitoring


      ✕
