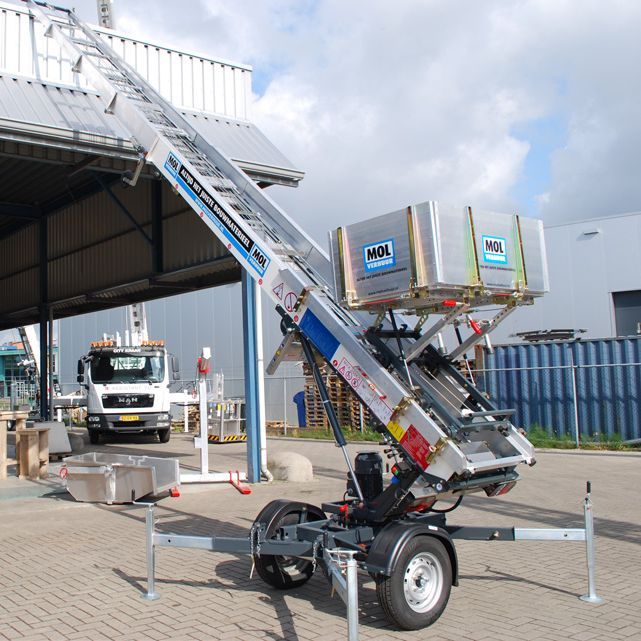

PAUS Easy Small Building Elevator

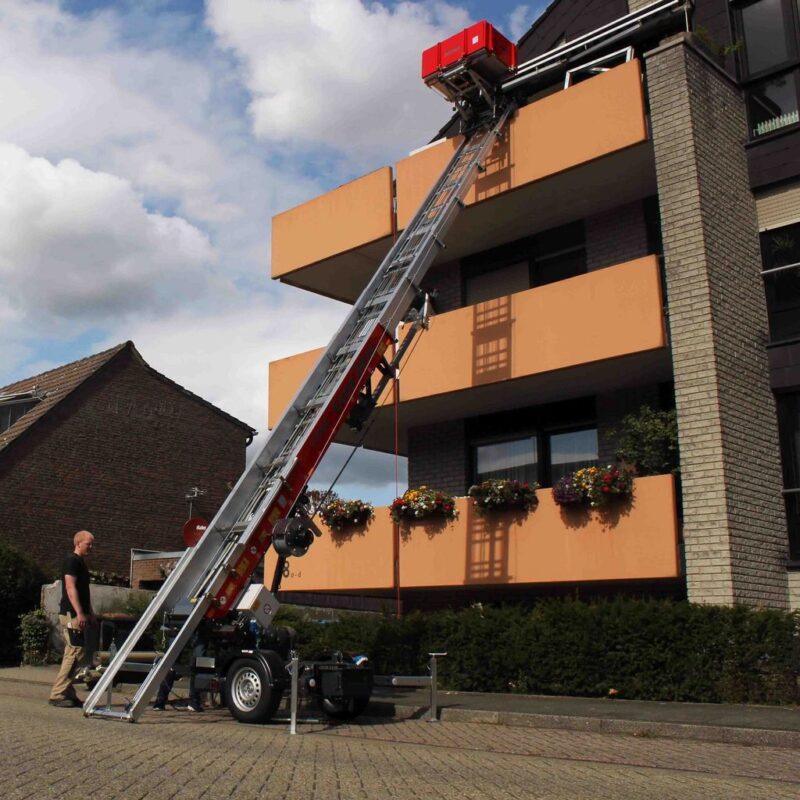

The Easy series telescopic elevators stand out for their compact yet durable construction. Thanks to their slim profile and lightweight build, they can access tight inner courtyards with ease. A folding, retractable drawbar reduces the footprint even further, allowing safe positioning on narrow streets. Offering lifting heights up to 24.4 meters and a payload capacity of 250 kg, these elevators provide a reliable solution for moving goods effortlessly to roofs.
Highlights & Features
• Narrow passage width, low dead weight

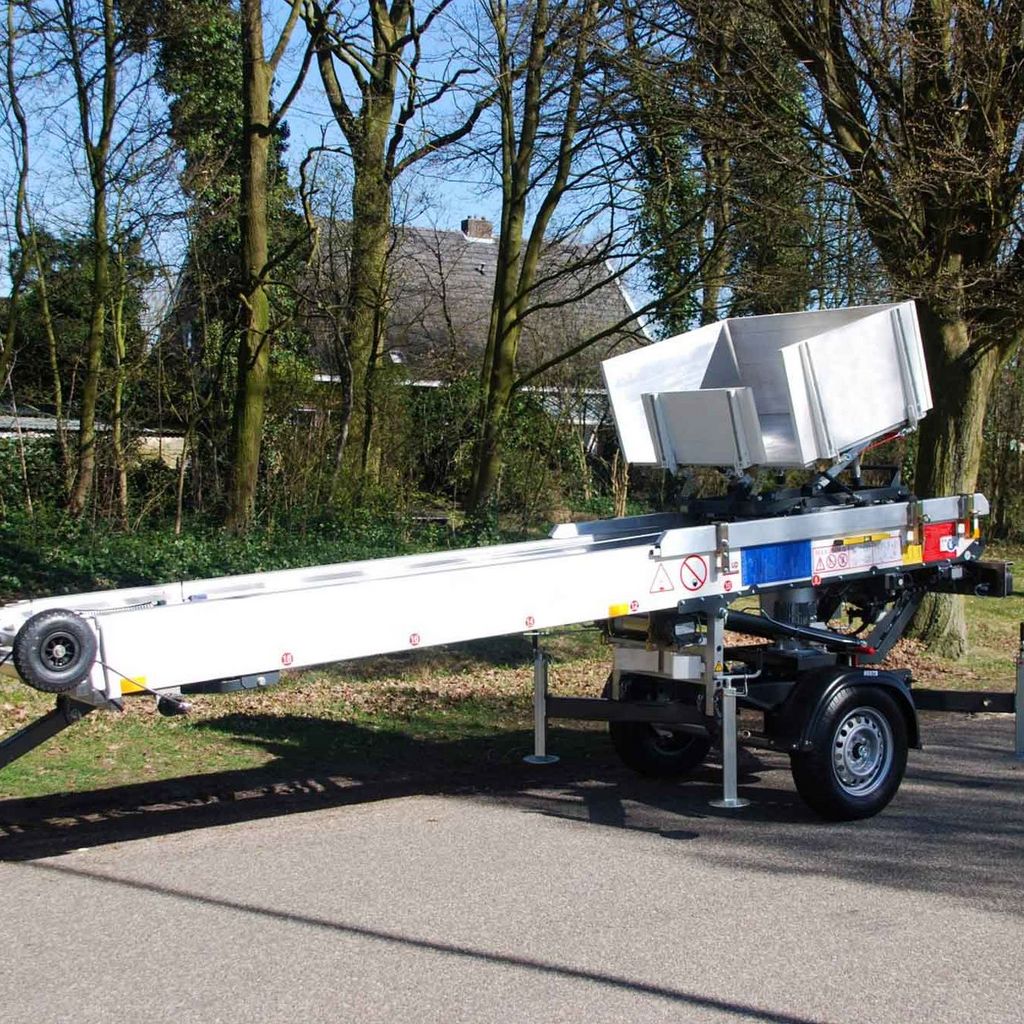

• Folding drawbar, compact footprint
• X-support for stability
• Double lifting cylinders with hydraulic rail pack extension
• 360° working area
Details
Lifting heights up to 24 metres
Load capacity 250 kg
Drive has 230 V electric motor or HONDA petrol engine
Hydraulic erection and extension of rail pack
Freely extending base extension
Freely adjustable turntable lock
Chassis (cathodic-dip-primed and powder-coated)
Carriage with automatic rope breakage safety mechanism
Documentation
Technical Data
| Specification | 21 WH-M | 25 WH-M | 28 WH-M | 31 WH-M |
|---|---|---|---|---|
| Number of profiles | 1 – 5 | 1 – 6 | 1 – 7 | 1 – 7 |
| Profile length | 4,750 mm | 4,750 mm | 4,750 mm | 5,000 mm |
| Extended length | 5 – 21 m | 5 – 25 m | 5 – 28 m | 5.25 – 31 m |
| Total weight (basic equipment) | 1,600 kg | 1,630 kg | 1,760 kg | 1,790 kg |
| Transport length | 6,600 mm | 6,600 mm | 6,600 mm | 6,850 mm |
| Transport width | 1,800 mm | 1,800 mm | 1,850 mm | 1,850 mm |
Options
Large universal platform
Solar platform
Platform for thatched roof
Universal platform
Wheels at head section (foamed or non-marking)
