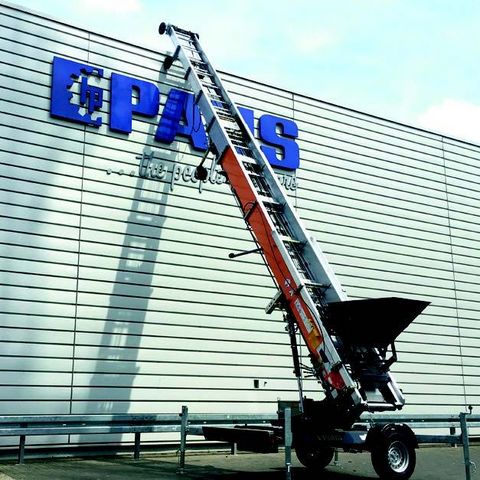

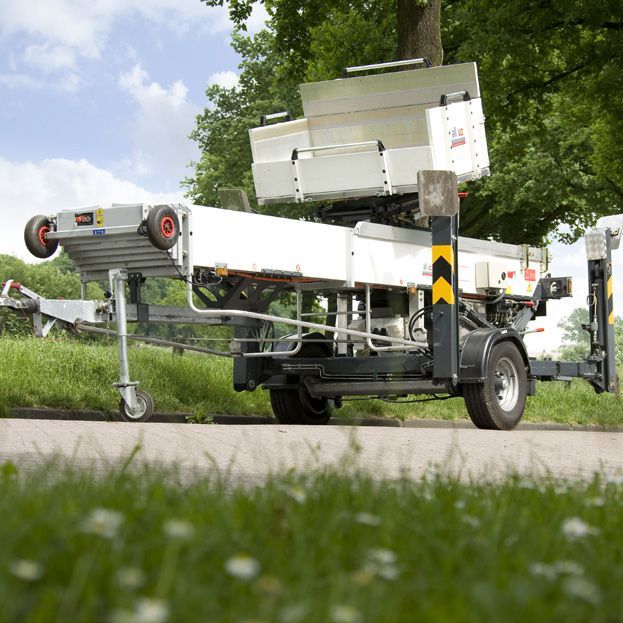

PAUS Easy Big Larger Building Elevator
The Easy Big telescopic elevators are designed to handle demanding loads of up to 400 kg, moving them securely and efficiently to working heights of 31 meters. Equipped with Honda engines featuring integrated soundproofing, they are perfectly suited for urban and residential environments.
Their robust platform offers continuous rotation and retractable functionality, making loading and unloading effortless. Despite their impressive lifting capacity and reach, these elevators remain compact, maneuverable, and intuitive to operate.
Highlights & Features
• Retractable drawbar, minimal footprint
• Double-telescoping X support
• Maintenance-free rails with polyamide skid blocks
• Double lifting cylinders
• 360° working area
Technical Data
Technical Data
| Specification | 21 WH-M | 25 WH-M | 28 WH-M | 31 WH-M |
|---|---|---|---|---|
| Number of profiles | 1 – 5 | 1 – 6 | 1 – 7 | 1 – 7 |
| Profile length | 4,750 mm | 4,750 mm | 4,750 mm | 5,000 mm |
| Extended length | 5 – 21 m | 5 – 25 m | 5 – 28 m | 5.25 – 31 m |
| Total weight (basic equipment) | 1,600 kg | 1,630 kg | 1,760 kg | 1,790 kg |
| Transport length | 6,600 mm | 6,600 mm | 6,600 mm | 6,850 mm |
| Transport width | 1,800 mm | 1,800 mm | 1,850 mm | 1,850 mm |
Details
Lifting heights up to 31 metres
Payload of 300 kg / 400 kg
HONDA four-stroke petrol engine, air-cooled
Furniture platform with quick-locking mechanism, can be rotated continuously and retracted
Freely extending base extension
Freely adjustable turntable lock
Automatic carriage zeroing
Carriage with automatic rope breakage safety mechanism
Benefits in Practice
• Handles heavier inventory with ease
• Designed for efficient city-center operations
• Durable build and enhanced safety
• Minimal transport burden
Options
Flat roof support block
Roof beam support block
Aluminium tube support
Roof tile cart
Shims
Special paint finish
230 V drive
OIL COOLER

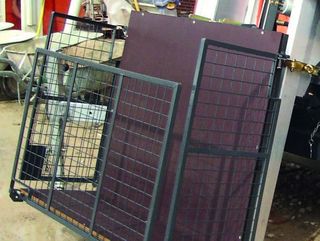

Large universal platform

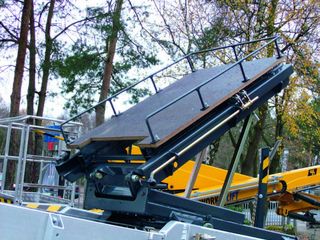

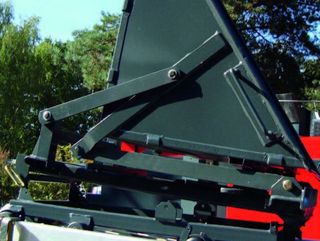

Solar platform

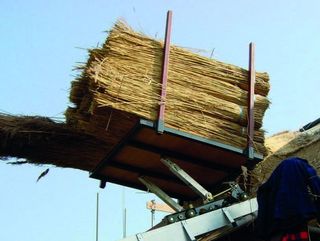

Platform for thatched roof

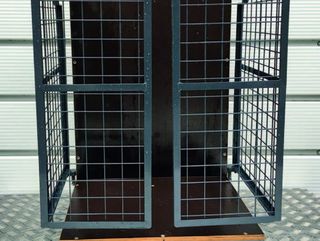

Universal platform

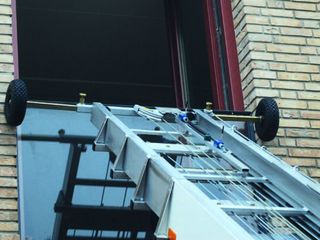

Wheels at head section (foamed or non-marking)
Window platform
Scaffold platform

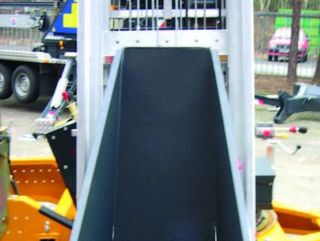

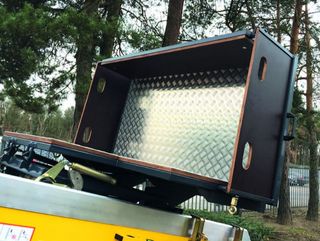

Discharge skip
Chimney skip with carriage
Spare wheel with holder
Platform for mastic asphalt

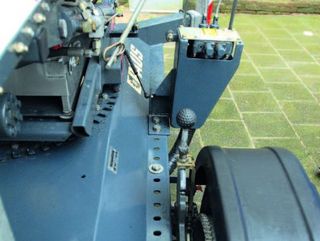

Hydraulic drive unit

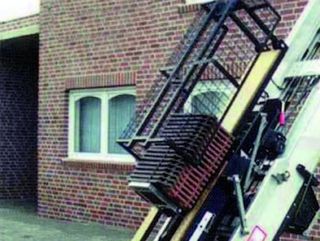

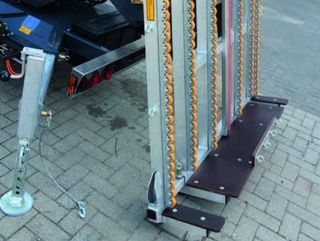

Tile-fore loading device

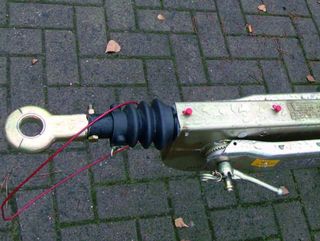

Truck towing eye

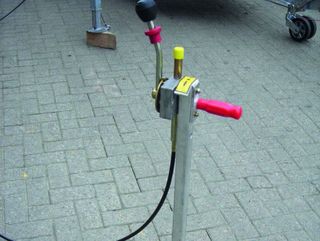

Bowden cable remote contro
