PAUS City Line Fully Hydraulic Building Elevator
Paus City Line construction elevators are engineered for tough, continuous use with minimal fuss. Setup is quick, and intuitive controls mean operators don’t need extensive training. Even units featuring the hydraulic double-knee joint run entirely from a single control station. Reach up to 37 m and move up to 250 kg to streamline roofing and building transports.
Highlights & Features
• C-profile steel chassis
• Maintenance-free rails with polyamide skid blocks
• Double extension ropes for aligned extension
• 200° radius of operation
• Soundproofed Honda petrol engine
Documentation

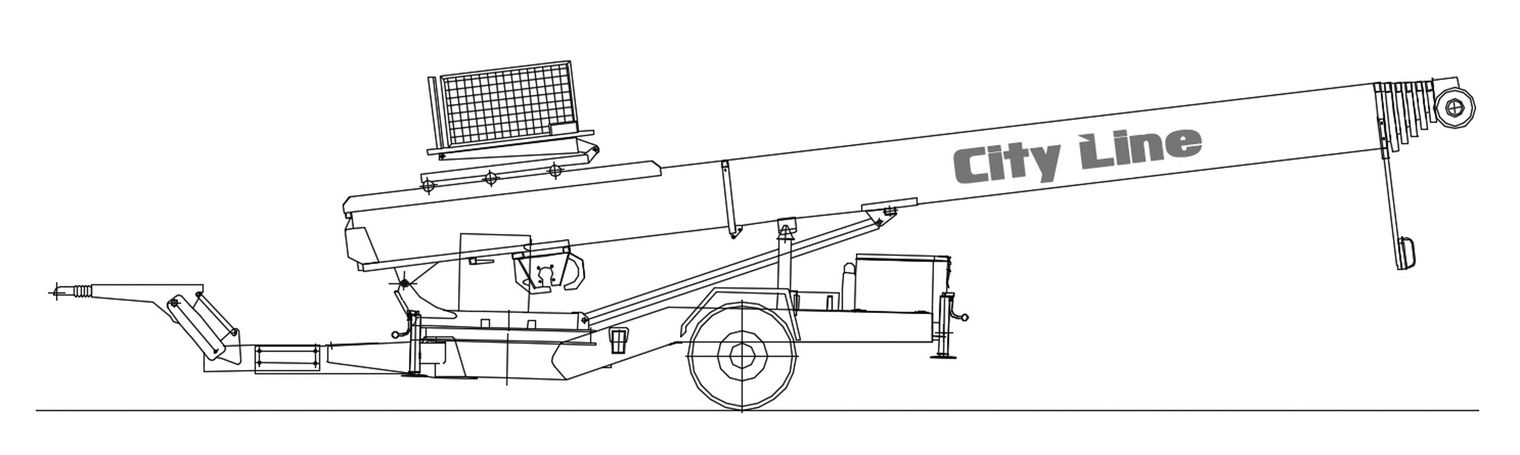

Technical Data
| Model | Number of profiles | Profile length | Extended length | Ext. length (knee on roof) |
Total weight (basic equipment) | Transport length | Transport width |
|---|---|---|---|---|---|---|---|
| 21 WH | 1 – 5 | 4,750 mm | 5 – 21 m | - | 1,600 kg | 6,500 mm | 1,800 mm |
| 25 WH | 1 – 6 | 4,750 mm | 5 – 25 m | - | 1,700 kg | 6,700 mm | 1,800 mm |
| 28 WH | 1 – 7 | 4,750 mm | 5 – 28 m | - | 1,800 kg | 6,800 mm | 1,800 mm |
| 31 WH | 1 – 7 | 5,000 mm | 5 – 31 m | - | 1,900 kg | 6,900 mm | 1,800 mm |
| 33 WH | 1 – 8 | 5,000 mm | 5 – 33 m | - | 2,500 kg | 7,000 mm | 1,850 mm |
| 37 WH | 2 – 8 | 6,500 mm | 6.5 – 37 m | - | 2,800 kg | 8,500 mm | 1,850 mm |
| 24 WH-KI | 2 – 6 | 5,000 mm | 5 – 24 m | 16 m / 6 m | 1,700 kg | 6,700 mm | 1,800 mm |
| 28 WH-KI | 2 – 7 | 5,000 mm | 5 – 28 m | 22 m / 6 m | 1,800 kg | 6,800 mm | 1,800 mm |
Details
Lifting heights up to 37 metres
Load capacity 250 kg
Radius of operation: 200°
HONDA four-stroke petrol engine, air-cooled
Optionally with internal hydraulic double knee joint 0-44° with 3 m roof extension
Freely extending base extension
Freely adjustable turntable lock
Automatic carriage zeroing
Carriage with automatic rope breakage safety mechanism
Benefits in Practice
• Smooth hydraulic lifting operation
• Highly adaptable for different job scenarios
• Durable materials and design reduce downtime
• Wide working radius covers multiple use cases
Options
Flat roof support block
Roof beam support block
Aluminium tube support
Roof tile cart
Shims
Special paint finish
230 V drive
OIL COOLER
Large universal platform
Solar platform
Platform for thatched roof
Universal platform
Wheels at head section (foamed or non-marking)
Window platform
Scaffold platform
Discharge skip
Chimney skip with carriage
Spare wheel with holder
Platform for mastic asphalt
Hydraulic drive unit
Tile-fore loading device
Truck towing eye
Bowden cable remote contro
